Footbridge at the Intersection of Jiaotong Road and Xilamulun Street in Tongliao City

Tongliao City, Inner Mongolia

2017

The project site is located at the intersection of Jiaotong Road and Xilamulun Street in main urban area of Tongliao City, surrounded by multiple schools and shopping malls with large traffic volumes; The bridge construction has effectively eliminated the safety hazards caused by mixed traffic of pedestrians and vehicles after completion, and guaranteed the smooth traffic along Jiaotong Road and Xilamulun Street as well.

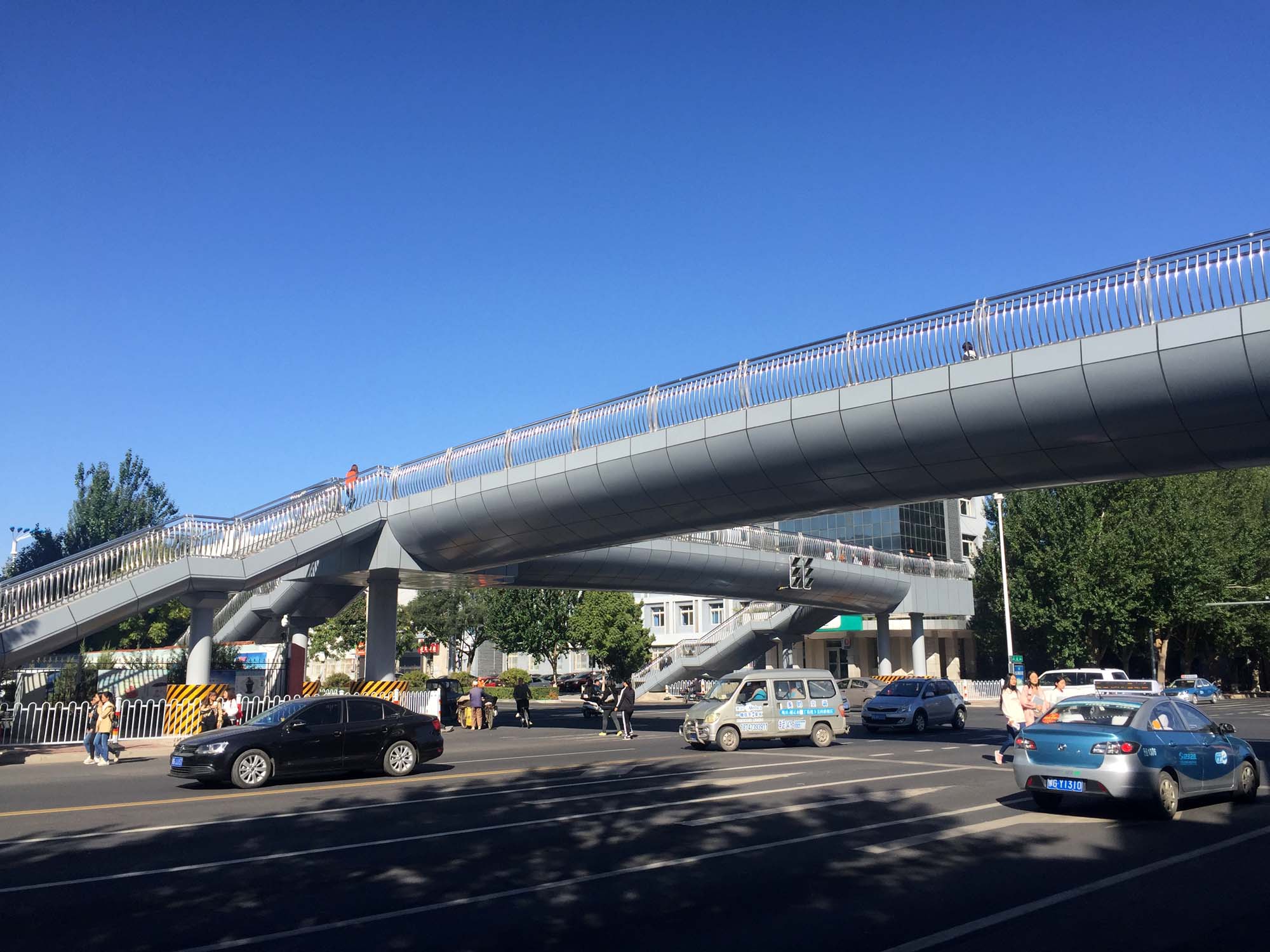

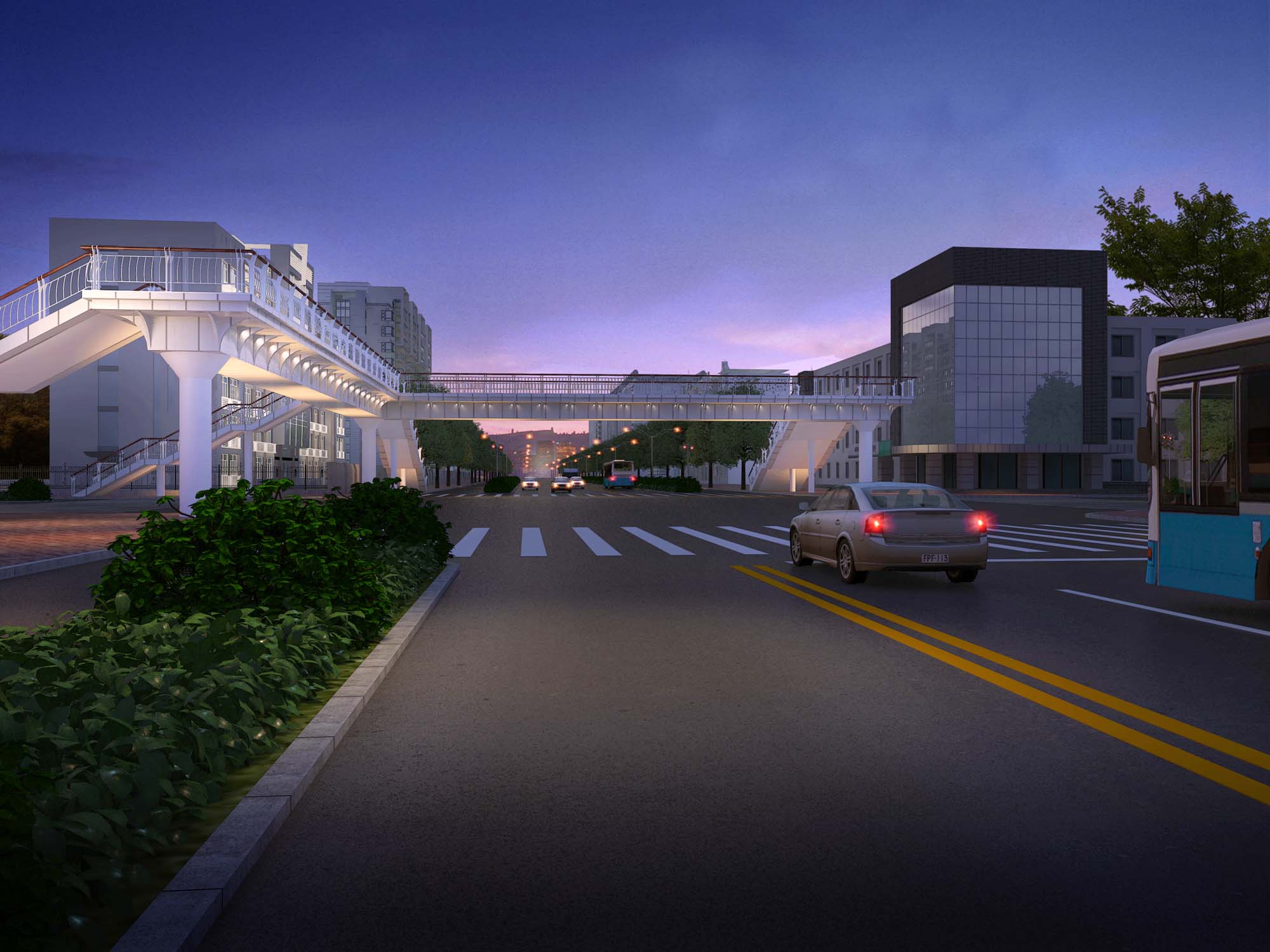

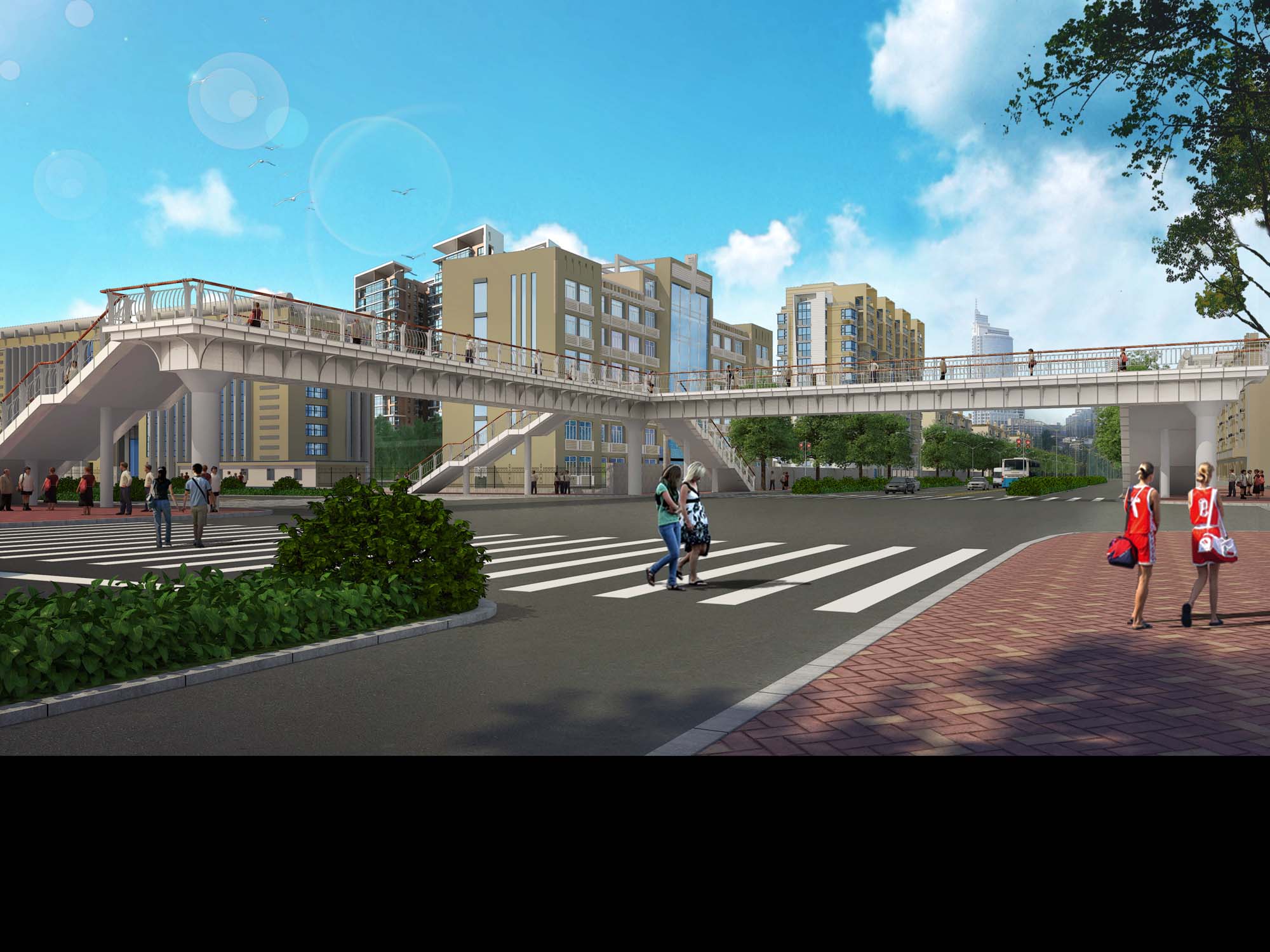

The overall plane of footbridge is an L-shaped layout orthogonal to the road centerline, and its main bridge is an L-shaped (92°) two-span continuous steel-box girder of equal height (1.40m), with the girder width and span length of 5m and 34.5+34.5m respectively.
